AZZUNO 135 Amp MIG Welder review

?Are you trying to decide whether the AZZUNO 135 Amp MIG Welder, 3 in 1 Multiprocess Welder 110V Flux Core Welder Flux MIG/Lift TIG/Stick Welding Machine Synergic Control IGBT Inverter Welder (Volts, 110) is the right tool for your projects?

Quick first impression

You’ll notice right away that this AZZUNO unit positions itself as a versatile 3-in-1 machine that aims to simplify welding for beginners while still being useful to hobbyists and light fabricators. The synergic control promises automatic parameter selection, which is especially handy if you don’t want to fiddle with voltage, wire feed speed, and amperage separately.

What this machine is designed for

You can use this machine for flux core MIG welding, lift TIG (torch not included), and MMA/stick welding. It runs on standard 110V household power, which makes it convenient for garage and home-shop use. It’s geared toward mild steel projects and light repair tasks rather than heavy industrial plate work.

Key features summary

You’ll find a few headline features that matter most:

• Synergic control that presets welding parameters for you.
• Multi-process capability: Flux MIG (flux core), Lift TIG (torch not included), and MMA/Stick.
• Compatibility with .030″ (0.8 mm) and .035″ (0.9 mm) flux core wire.
• Works with E6013 rods in ARC mode.
• Built-in overload and overheating protection.
• IGBT inverter technology for stable output and efficiency.

A note on the product name

You’ll see the full product name used here to keep things clear: AZZUNO 135 Amp MIG Welder, 3 in 1 Multiprocess Welder 110V Flux Core Welder Flux MIG/Lift TIG/Stick Welding Machine Synergic Control IGBT Inverter Welder (Volts, 110).

Technical specifications (at-a-glance)

Below is a compact table to help you quickly understand what this welder offers.

Specification	Details
Model / Name	AZZUNO 135 Amp MIG Welder 3-in-1 (110V)
Processes	Flux Core MIG, Lift TIG (torch not included), MMA/Stick
Input Voltage	110V (household)
Max Output Current	135 A
Flux Core Wire Size	.030″ (0.8 mm) & .035″ (0.9 mm)
Electrode Compatibility	E6013 (ARC mode)
Plate Thickness Capability	Up to ~3.0 mm (mild steel)
Control Type	Synergic control (preset welding parameters)
Inverter Type	IGBT
Safety Features	Overload and overheating protection
Torch	MIG gun included; lift TIG torch not included
Target User	Beginners, hobbyists, DIYers, light workshop use

Synergic control — what it means for you

The synergic control system is one of the main selling points, and it’s designed to simplify setup. You’ll select or input a parameter like wire size or material thickness, and the machine will calculate a matching voltage, amperage, and feed speed. That reduces the time you spend ringing in settings and helps you avoid common setup mistakes.

You should still learn the basics of welding parameters, because synergic presets are a great starting point but sometimes require small adjustments for weld appearance, penetration, and spatter control.

Welding performance and capability

You can expect this machine to handle mild steel up to approximately 3.0 mm in thickness, which suits panel work, small repairs, frame building, and thin-gauge fabrication. At 135 amps max output on 110V, you won’t be breaking records for penetration, but you’ll have plenty of power for the intended light-to-medium tasks.

Performance depends heavily on wire choice, travel speed, and joint preparation. If you keep clean edges and use the recommended .030 or .035 flux core wire, you’ll get the most consistent results.

Flux core MIG specifics

Using flux core wire means you won’t need an external shielding gas, which is convenient for outdoor or drafty conditions. The unit accepts .030″ (0.8 mm) and .035″ (0.9 mm) flux core wire, which are common sizes and easy to source.

You should keep in mind that flux-core welding can produce more smoke and spatter than gas-shielded MIG, so clean-up and proper ventilation matter. Flux-core electrodes are well-suited for rusty or painted materials when you don’t have time for perfect preparation.

Lift TIG note

Lift TIG functionality is included, but you’ll need to provide a compatible TIG torch to use it. When performing lift TIG, you get a cleaner arc and better control for thin metals and more precise welds, but using TIG effectively requires practice and the right consumables.

MMA/Stick welding

ARM/ARC mode supports E6013 rods, which are general-purpose electrodes good for light fabrication, repair, and work on slightly dirty surfaces. If you plan to run other electrode types (E7018, etc.), check the manual or vendor support to confirm compatibility and settings.

Build quality and design

The AZZUNO unit uses IGBT inverter technology, which tends to offer reliable arc stability and efficient power conversion. The chassis is compact and portable for a 3-in-1 machine, meaning you can carry it around projects and store it easily in a home shop.

You should inspect cable connections, the MIG gun fitting, and the wire feeder mechanism when you receive the machine to ensure everything is snug and free of damage. The wire feed system’s tensioner and the rollers are important for consistent feeding—pay attention to their setup.

Safety features and what they protect

Safety is built in with overload and overheating protection. The system will limit output if components start to overheat, helping prolong machine life and reducing the chance of component failure. You should still follow welding safety best practices: wear proper PPE, ensure good ventilation, and keep a fire extinguisher nearby.

Because the unit runs on 110V, shock hazard risks are lower than with high-voltage equipment, but you must still ensure dry conditions and avoid contact with live parts.

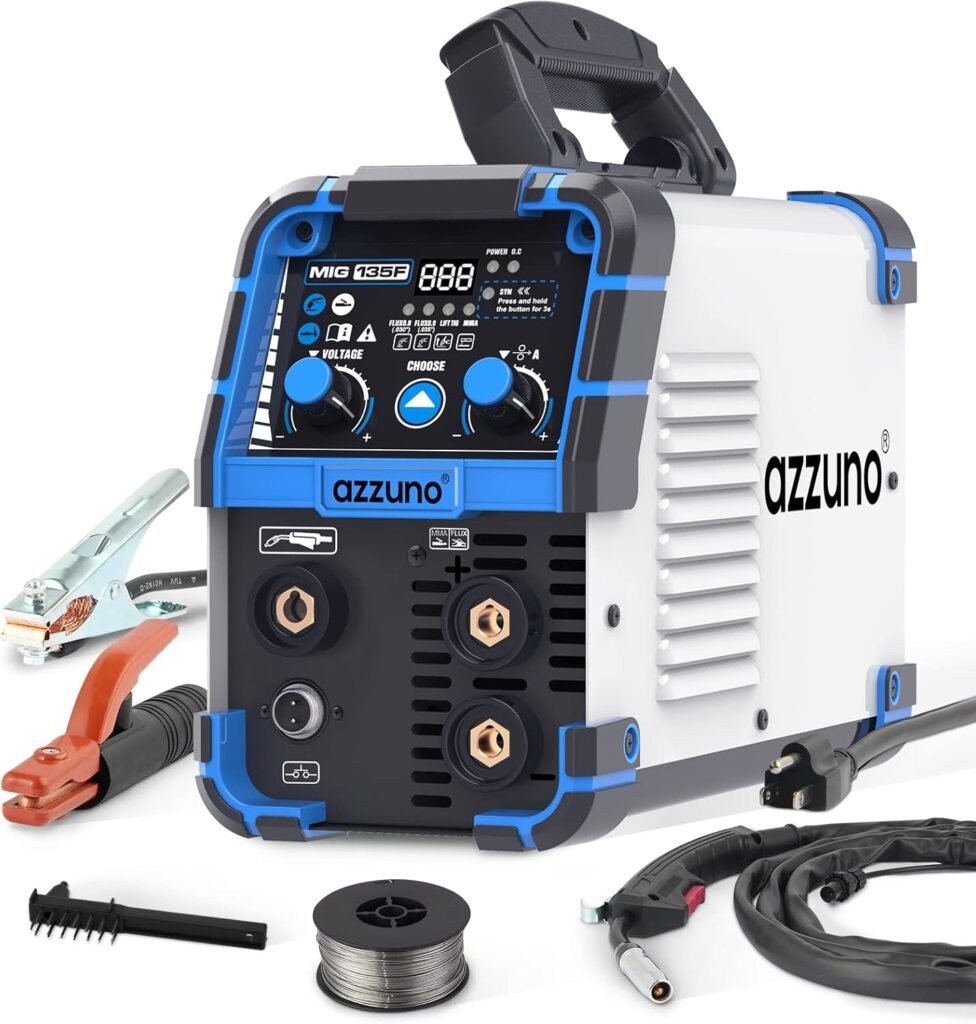

What you get in the box and what you’ll need

Typically, you’ll get the main unit, the MIG gun and cable assembly, ground clamp and cable, and sometimes a spool of flux core wire or basic consumables. The lift TIG torch is not included, so you’ll need to purchase that separately if you want TIG capability.

You’ll also want basic accessories: a helmet with proper lens shade, welding gloves, chipping hammer and wire brush, spare contact tips, and extra flux core wire. If you plan on stick welding a lot, stock extra E6013 rods.

Consumables and spares to keep on hand

You should keep spare contact tips, a back-up nozzle, and extra drive rollers for the wire feed. Flux core wires in both .030 and .035 are cheap and commonly available, so it’s a good idea to have a few spools ready.

For TIG, if you purchase a torch later, have tungsten electrodes and gas cups appropriate for lift TIG (even though lift TIG doesn’t require shielding gas the same way as conventional TIG, some setups do use gas).

Ease of use and learning curve

If you’re new to welding, you’ll appreciate the synergic control because it makes the initial setup less intimidating. You’ll still need practice to master travel angle, electrode stickout, and consistent motion, but the machine reduces the barrier to entry.

The user interface is designed to let you change a few settings and then weld. If you’ve used basic welders before, you’ll recognize the common controls. If you’re brand new, plan for a learning period where you test settings on scrap and adjust based on bead appearance and penetration.

Tips for beginners

• Start on scrap pieces to confirm settings before moving to your final project.
• Keep a weld log: note material thickness, wire size, feed speed, and voltage for repeatability.
• Maintain a consistent travel speed and gun angle for cleaner welds.
• Watch the arc puddle and listen for a steady “zipping” sound—those are signs you’re in the right range.

Practical applications and project examples

You can use the AZZUNO 135 Amp for automotive sheet metal repair, small frame fabrication, garden equipment repair, and hobby metal art. It’s a good match for home maintenance and light fabrication, where you need a machine that can switch between processes without swapping heavy equipment.

If you mostly work on heavy structural steel or very thick plates, this unit won’t be your production machine. But for DIYers and hobbyists, it’s a compact and cost-effective option.

Pros — what you’ll likely appreciate

You’ll enjoy several benefits from this machine:

• Versatility: Three processes in one footprint.
• User-friendly: Synergic control helps simplify setup.
• Portability: Lightweight and runs on 110V household power.
• Convenience: Flux core eliminates the need for shielding gas in many situations.
• Safety protection: Overload and overheating guards preserve the unit.

You’ll find that maintenance and learning are manageable, and the price-to-feature ratio is often favorable for users with light-to-medium welding needs.

Cons — limitations you should consider

There are some trade-offs to be aware of:

• Lift TIG torch is not included; you must buy it separately to use TIG.
• Max amplitude (135A) and 110V input limit heavy-plate welding and long production runs.
• Flux core welding can be messier than gas-shielded MIG, producing more spatter and smoke.
• If you need professional-level TIG capability with argon shielding, you’ll need a dedicated TIG machine or additional accessories and setups.

Make sure these limitations align with your intended use case before you buy.

Setup checklist — get welding faster

You’ll move from unboxing to welding more smoothly if you follow a simple checklist:

1. Inspect the unit and accessories for shipping damage.
2. Mount the spool of flux core wire correctly and thread through the feed path.
3. Set the drive roller for .030 or .035 wire as appropriate.
4. Attach the work clamp to a clean metal surface on the workpiece.
5. Plug into a dedicated 110V outlet (avoid extension cords if possible).
6. Select the synergic preset based on wire size and thickness, then test weld on scrap.
7. Adjust small amounts of voltage or feed speed until you get a smooth bead.

Every point above will save you time and frustration during your first welds.

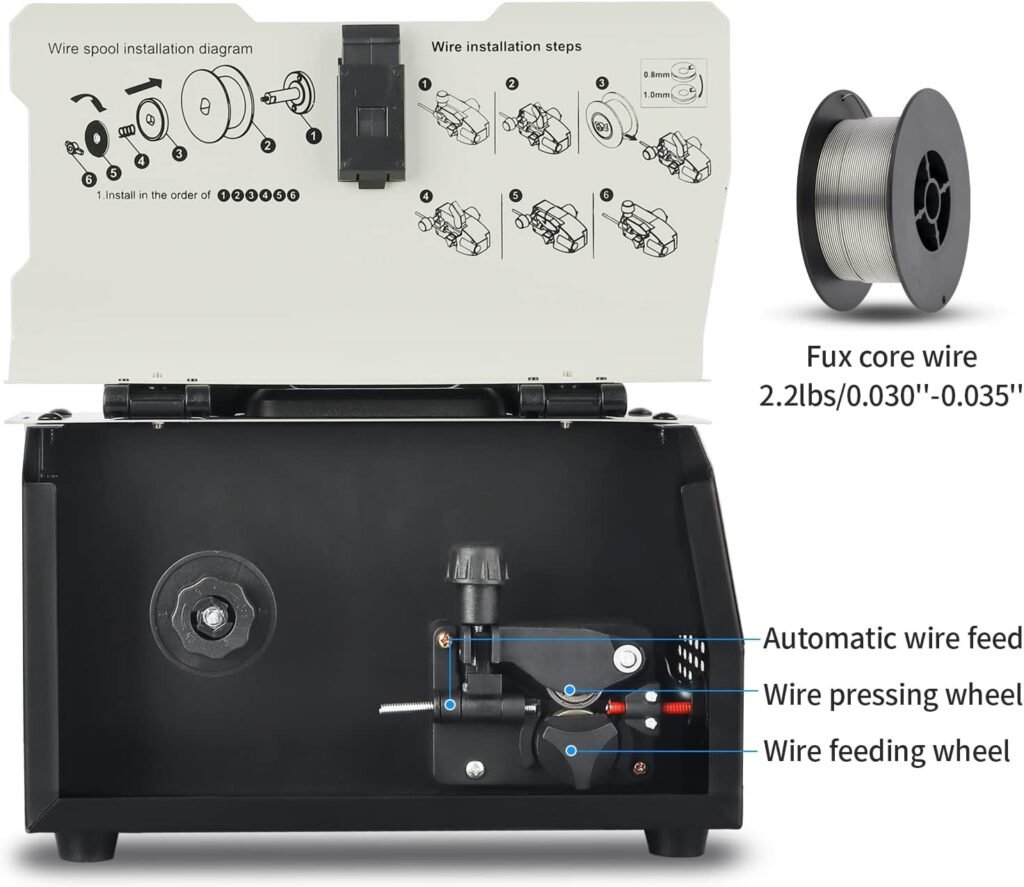

Wire feeding and troubleshooting

Wire-feeding consistency is critical. If you get bird-nesting (wire tangles) or frequent feed slips, check these things:

• Is the spool seated properly and the retaining screw lightly tightened?
• Is the drive roller groove matched to the wire diameter?
• Is the tension set so the wire feeds smoothly but doesn’t slip or crush the wire?
• Are contact tips clean and undamaged?

You’ll also want to periodically clean the MIG gun liner and replace consumables when signs of wear appear.

Maintenance tips to extend machine life

Routine maintenance will make your machine more reliable:

• Keep ventilation slots and fans clean of dust and metal particles.
• Inspect cables and connectors for broken insulation or loose terminals.
• Replace worn contact tips and nozzles before they cause erratic arcs.
• Periodically check the drive motor area for wire buildup and clean as needed.
• Store the machine dry and away from corrosive environments.

A little preventive maintenance will keep you welding longer and reduce downtime.

Safety reminders specific to this machine

Even on 110V, you must respect welding hazards:

• Use a proper welding helmet with the right shade for flux core arc brightness.
• Wear flame-resistant clothing, gloves, and closed-toe boots.
• Make sure your workspace has good ventilation to handle fumes.
• Keep flammable materials away from the welding area and monitor for sparks.
• Be cautious when handling the work clamp and gun—don’t touch live connections while power is on.

Following these steps will keep both you and the equipment safer.

Comparing alternatives — how this stacks up

If you’re comparing the AZZUNO 135 to other hobby-class multiprocess inverters, you’ll notice it checks a lot of boxes: synergic control, 3-in-1 capability, and 110V operation. Other machines might offer higher duty cycles, built-in TIG torches, or higher amperage, but that generally comes with higher cost and often less portability.

You should choose based on your priorities: if portability and simplicity are important, AZZUNO is attractive. If you need heavy production TIG welding or thicker plate work, consider a higher-powered dedicated machine.

Price-to-value considerations

You’ll typically find the AZZUNO unit priced competitively for a 3-in-1 inverter. Given the synergy control and included MIG gun, the cost-per-feature is favorable, especially for hobbyists and home-shop users. Factor in the need to buy a TIG torch if TIG work is on your list—add that to your budget when comparing costs.

Real-world user scenarios

• If you restore a car and need to patch thin sheet metal, you’ll use flux core for quick repairs and maybe try lift TIG for cleaner welds with a torch.
• If you build metal furniture or garden structures, the flux-core capability gives you portability and simplicity without gas cylinders.
• If you’re learning welding, synergic presets let you make good-looking welds faster, building your confidence.

In each scenario, the unit’s strengths play directly into the practical benefits you’ll experience.

Troubleshooting common issues

If you run into problems, here’s what to check:

• Excessive spatter: reduce wire feed speed or adjust voltage slightly; use clean metal.
• Porous welds: ensure good wire quality and correct travel speed; clean the base metal.
• Inconsistent feed: clean the liner and adjust drive tension; match roller groove to wire.
• Overheating shutdowns: allow the unit to cool and ensure ventilation isn’t obstructed.

These checks will solve many common beginner and intermediate issues quickly.

Tips for better weld quality

You should pay attention to joint preparation and travel technique. Keep an even travel speed, maintain 10–20° drag or push angle depending on joint type, and keep consistent arc length. If you’re using flux core, a slightly longer stickout can help with spatter control, but too much will reduce deposition and penetration.

Documenting each successful setting for a given material thickness and joint type will let you reproduce quality welds quickly in the future.

Accessories you might want to buy

To get the most from this machine, consider:

• A quality lift TIG torch kit if you want TIG capability.
• Spare contact tips and nozzles for the MIG gun.
• Extra spools of .030 and .035 flux core wire.
• A welding cart for mobility and storage.
• A digital welding helmet for better visibility and quicker reactions.

These accessories improve user experience and reduce downtime.

Warranty and customer support

According to the product details, customer service is available online. You should register your unit and document any issues with photos and serial numbers if you need to file a claim. Keep purchase receipts and communications for warranty follow-up.

If you run into compatibility questions (like using electrode types other than E6013), contacting the vendor directly will give the most reliable guidance.

Final verdict — who should buy this

You should consider the AZZUNO 135 Amp 3-in-1 if you want a compact, versatile, and affordable multiprocess welder for home, garage, or hobby-shop use. It’s especially suited for beginners and DIYers who appreciate synergy control to reduce setup time and for those who need a machine that runs on standard household power.

If your work involves thick structural steel, long production runs, or professional TIG-only tasks, you should look at higher-capacity or dedicated machines. But for everyday repairs, light fabrication, and learning, this model provides good value and convenience.

Quick buy-or-skip checklist

You’ll likely buy this if:

• You need a compact 3-in-1 machine for hobby or home use.
• You prefer a machine that runs on 110V household power.
• You like the idea of synergic presets to simplify setup.

You should skip or consider alternatives if:

• You need heavy plate welding or high-duty-cycle performance.
• You want full TIG capability out of the box (torch not included).
• You require a professional-grade machine for daily production work.

Closing tips before you order

Before you commit, verify what’s included in the package from the seller, confirm the exact amperage and duty cycle specs if you require specifics, and plan for at least a basic set of consumables and safety gear. If you later add a TIG torch, make sure it’s compatible with the machine’s connectors and control scheme.

If you follow these guidelines and take advantage of the synergic features, you’ll get a lot of utility from the AZZUNO 135 Amp MIG Welder in your garage or small shop.
