CNCTOPBAOS DC 24V 40W Wire Feed Motor review

Looking for a reliable wire feed motor that improves your MIG/MAG welding performance without breaking the bank?

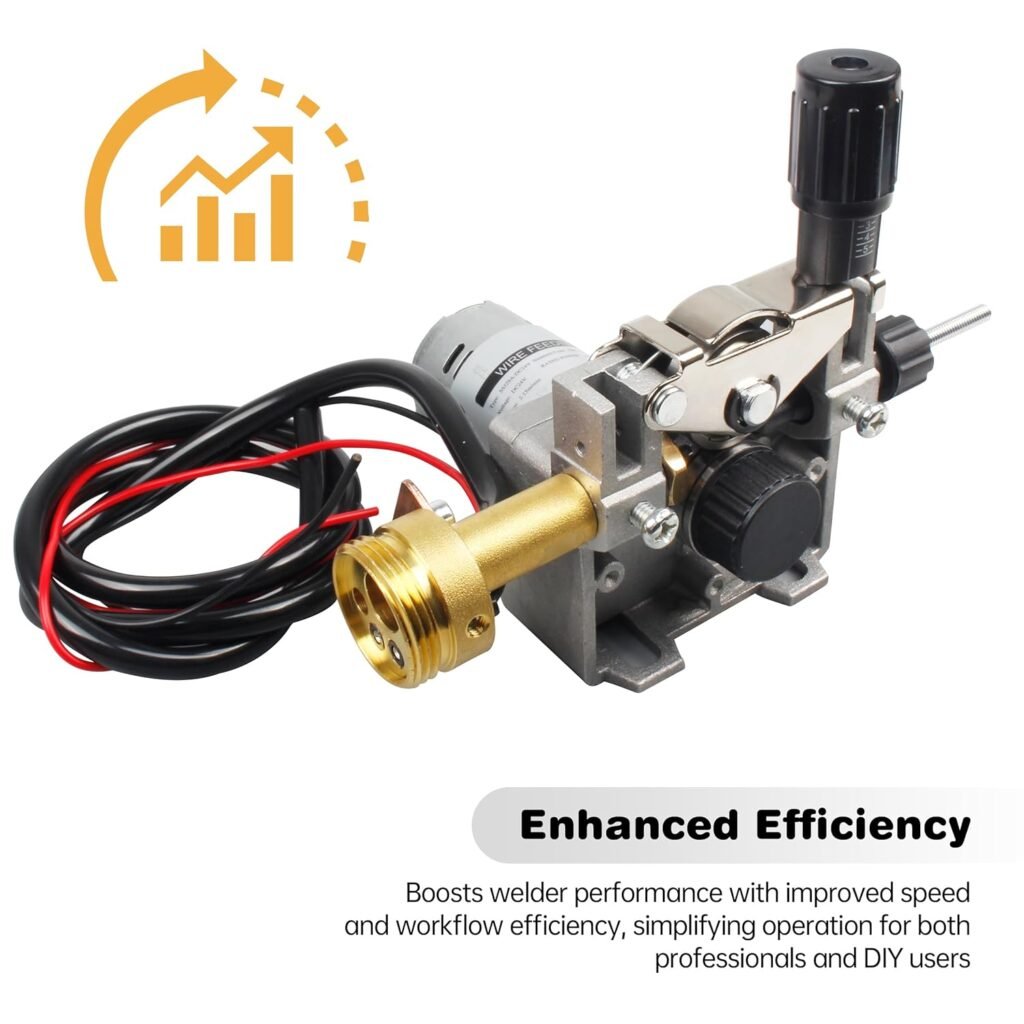

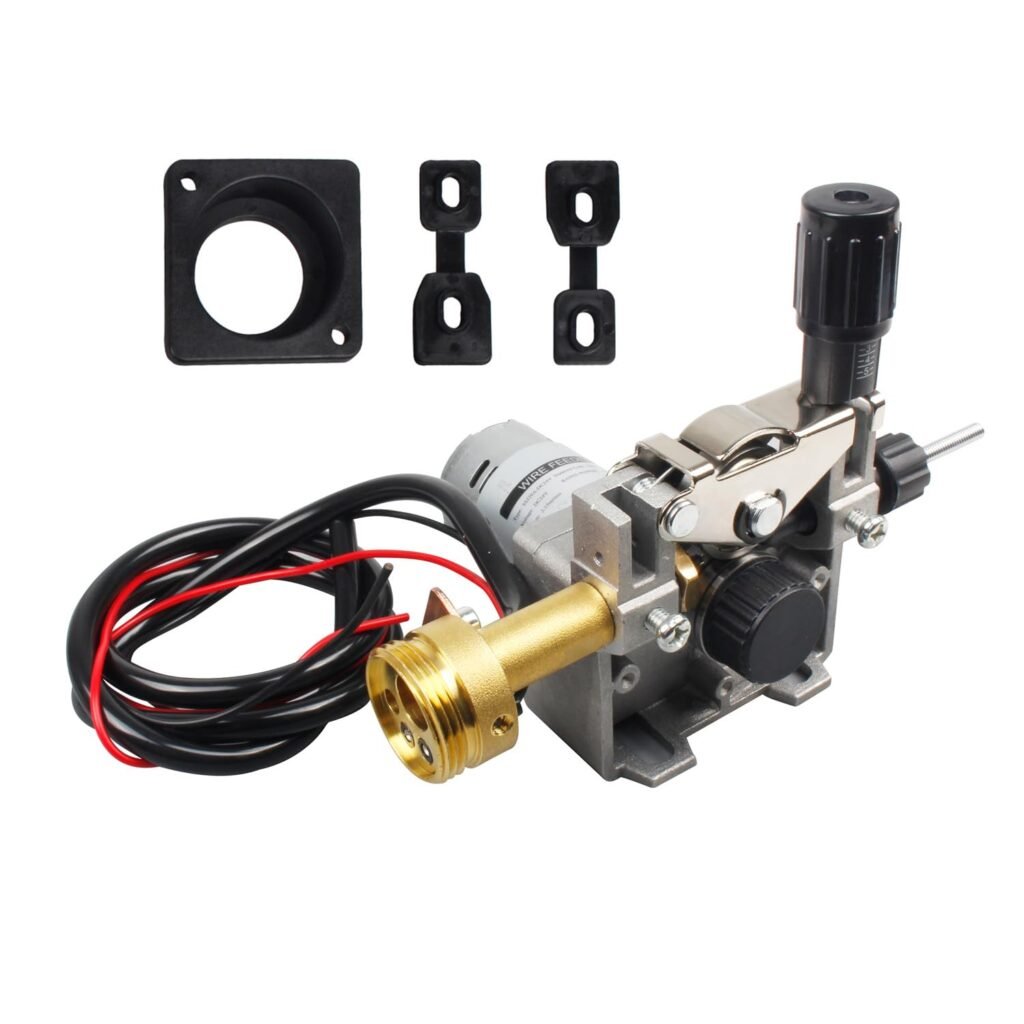

Product overview: CNCTOPBAOS DC 24V 40W Wire Feed Motor,Welder Roll Feeder for MIG MAG Welding Soldering Wire Feeding Machine Accessories,Copper Interface,0.6-10mm 0.02-0.39 inch Welding Wire Feed Speed 2-15m/min

You’ll find this CNCTOPBAOS wire feed motor positioned as a compact, no-nonsense accessory for semi-automatic welding setups. It’s designed to match a wide range of small- to medium-sized welding machines and to make wire feeding smoother and more reliable for DIY, repair, and light production work.

What the product promises

The manufacturer highlights consistent feeding speed (2–15 m/min), a 40W 24V DC motor, low noise, and a copper interface for stable electrical contact. You can expect straightforward installation and a design aimed at reducing downtime during spool swaps or motor replacements.

Specifications

You’ll want a clear snapshot of the specs before committing. The table below breaks down the technical details so you can quickly see whether this unit fits your machine and the wires you use.

Specification	Details
Product name	CNCTOPBAOS DC 24V 40W Wire Feed Motor, Welder Roll Feeder
Rated Power	40 W
Rated Voltage	DC 24 V
Rated Current	2 A
Wire Feeding Shaft Size	30 x 10 x 10 mm (1.18 x 0.39 x 0.39 in)

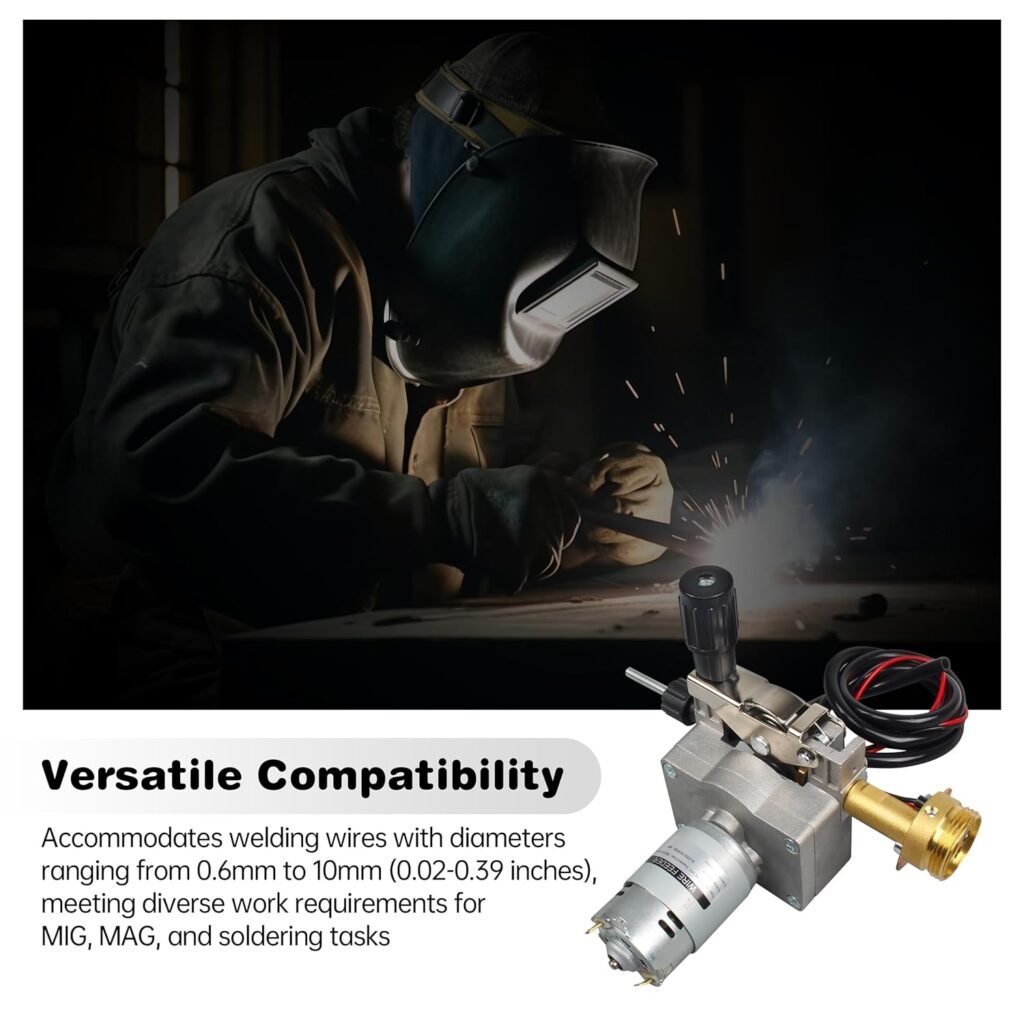

Wire Diameter Range	0.6–10 mm (0.02–0.39 in)
Feed Speed	2–15 m/min
Max Operating Torque	15 kg·cm
Dimensions (approx.)	Width 140 mm; Height 150 mm
Material	Aluminum housing; copper interface
Applications	MIG/MAG, gasless MIG, semi-automatic welding, robotic welding, 3-in-1 welders
Noise / Lifetime	Low noise, engineered for extended service life

You’ll notice the core electrical and mechanical values are typical for small wire feed motors, and the wire diameter range is broad, though you’ll need to match the shaft size and drive roll type to your spool and wire.

Design & build quality

You’ll appreciate that this unit favors a compact footprint and practical construction that suits shop benches, small workstations, and portable welding rigs. The aluminum housing keeps weight down while resisting corrosion, and the copper interface improves electrical contact.

Materials and construction

The aluminum body gives you corrosion resistance and lower weight for easier handling and mounting. The copper interface is a meaningful inclusion, since copper improves conductivity and helps ensure stable current transfer, which is important during continuous welding runs.

Size and weight

With a width of about 140 mm and a height around 150 mm, this motor is easy to fit into constrained setups and replaces many common feeder modules. You’ll find its lightweight build makes installation and swaps quicker without needing robust supports or heavy brackets.

Interface and connectors

The copper interface ensures stable conductivity where the feeder mates with your machine’s drive circuit. You’ll still need to double-check connector fitment and wire routing on your particular welding machine to avoid loose contacts or interference with shielding gas hoses or control cables.

Performance

You’ll want to know whether the motor actually feeds wire smoothly and consistently under real conditions. Based on the specs, it’s designed to maintain steady wire feed speeds between 2 and 15 m/min, supported by a maximum torque of 15 kg·cm.

Feeding speed and torque

The 2–15 m/min feed range covers low-speed spot or TIG assist work up to moderate MIG/MAG deposition tasks. The 15 kg·cm torque rating is strong enough for small to medium wire diameters and common drive roll setups, so you should see minimal wire slip if you use the correct drive roll and pressure.

Noise and reliability

This model is described as engineered for low noise and extended service life. You’ll most likely notice subdued mechanical noise compared with cheaper feed units, and the use of quality materials helps reduce wear. Still, your maintenance habits (cleaning and keeping the feed path free of spatter) will heavily influence long-term reliability.

Continuous vs spot welding

The motor’s torque and feed rate make it suitable for both spot welding and longer continuous bead runs in mild steel and common flux-cored wires. If you primarily run long, heavy-duty industrial welds or very thick wires regularly, you’ll want to confirm the motor stays cool under sustained load, but for DIY and small shop work it should perform well.

Compatibility & applications

You’ll need to match the motor’s physical and electrical specs to your welder, but this unit aims to be versatile across several equipment classes. It’s targeted at semi-automatic welders, gasless MIG systems, and small robotic or trolley welders.

Machine compatibility

This feed motor is made to fit many welding machines that accept external feeders with a 24V drive interface and similar mounting footprint. You’ll need to verify the mounting hole pattern, electrical connector type, and drive roll fit with your machine or feeder housing before purchase.

Common use cases

If you’re doing small-scale repair, DIY fabrication, or running a 3-in-1 unit (MIG/MAG, Lift TIG, Stick), this motor can be a practical upgrade or spare. You’ll also find it useful for hobbyists who need a compact, low-noise feeder for intermittent welding sessions or for robotic setups where space and weight matter.

Installation & setup

You’ll likely find installation straightforward, but you should follow a checklist to avoid common issues. Always disconnect power and feed gas before you start, and double-check drive roll alignment and pressure.

Mounting and fit

Mount using the same footprint as your existing feeder if possible. You’ll want to align the wire feeding shaft with your drive roll and ensure the spool path is straight to minimize friction and reduce birdnesting (wire tangling).

Wiring and electrical connections

Connect the motor to a DC 24V supply that can deliver around 2A continuously. Verify polarity and use proper cable sizes and secure terminals to avoid voltage drop or heat buildup. You’ll also want to check that your welder’s control circuit matches the motor’s requirements so speed control and feed engagement work correctly.

Common setup issues and fixes

If the wire slips, check drive-roll pressure, inspect the groove type for your wire diameter, and clean the feed path. If the motor hums but doesn’t rotate, verify 24V supply and check for seized bearings or gear blockage. For inconsistent speed, check the control potentiometer wiring and any inline drive controllers.

Maintenance & longevity

You’ll extend the life of the motor with basic preventive maintenance, and the design makes routine care straightforward. The motor aims to provide low noise and extended service life, but you’ll need to take simple steps to avoid premature wear.

Cleaning and lubrication

Keep the drive area free of spatter and dust. Periodically clean the shaft, drive roll grooves, and the casing with a soft brush and compressed air. If the manufacturer’s manual calls for lubrication at certain intervals, use recommended lubricants and avoid over-greasing, which can attract grit.

Wear parts and replacements

Drive rolls, pressure pads, and sometimes bearings are the parts that wear first. You’ll want to stock common drive roll sizes and pressure pads to avoid downtime. The copper interface and aluminum housing reduce corrosion-related failures, but connectors and wires are still susceptible to wear.

Troubleshooting common failures

If you notice irregular feed or reduced torque, start by checking drive roll alignment and pressure, wiring and voltage, and worn drive components. Replace worn drive rolls and inspect for bent shafts or sprockets. If the motor itself becomes noisy, bearing wear is a common cause and repairing or replacing the motor may be necessary.

Durability and materials benefits

You’ll find the aluminum housing resists corrosion while keeping weight low, and the copper interface improves conductivity during operation. These material choices help the unit hold up under regular shop conditions where moisture and spatter are common.

Corrosion and oxidation resistance

Aluminum naturally creates an oxide film that helps stop deeper corrosion, which is helpful in shop environments. The copper interface, while conductive, should be protected from acidic or salty environments to maintain longevity.

Thermal behavior

The motor is 40W and rated for 24V operation; under continuous load you will want to ensure adequate ventilation so the motor does not overheat. You’ll find that lighter-duty use and intermittent welding keeps temperatures well within safe ranges.

Testing and expected performance

If you don’t have lab test data, you can base expectations on the spec sheet and real-world behavior of similar motors. You’ll expect solid performance for most hobbyist and light industrial tasks.

Speed consistency

With a proper voltage supply and clean, correctly-grooved drive rolls, the motor should provide smooth and repeatable feeding across the full 2–15 m/min range. You’ll get the best results when wire spools feed freely and the liner and contact tip are clean.

Torque under load

A 15 kg·cm torque rating is adequate for small to medium wire diameters and for typical MIG/MAG flux-cored feeding. You’ll want to avoid consistently pulling heavier wires at max feed speeds for prolonged times, as that’s when heat and motor stress increase.

How it compares to alternatives

You’ll find cheaper feeder motors on the market and more expensive industrial-grade units. This CNCTOPBAOS model positions itself as a mid-range option that balances price, size, and features.

Budget vs. value

Compared to bare-bones budget feeders, this unit’s copper interface and aluminum housing likely provide better longevity and electrical stability. Compared to premium industrial feed units, it sacrifices some heavy-duty endurance and advanced control features, but saves you money and space.

Where it wins

You’ll notice the motor shines in compactness, ease of installation, and for providing a reliable feed rate for DIY and small-shop welding tasks. The copper interface is a useful differentiator versus cheaper models that use lesser conductive materials.

Where it falls short

If your work involves heavy production runs, very large wire diameters, or harsh industrial environments, you’ll likely prefer a more robust industrial-grade feeder with stronger torque ratings and heavier construction.

Practical tips for best results

You’ll get the most from this motor by pairing it with the right consumables and maintaining good practices. A little preventative work saves a lot of troubleshooting time.

Choose the right drive roll

Match drive roll groove types to the wire you use—V-grooves for solid wire, U-grooves for stainless or soft wires, and knurled rolls for flux-cored wires. You’ll minimize slip and wire deformation when you use the correct profile.

Mind your voltage and wiring

Ensure your welding machine or control module supplies a stable 24V and sufficient current. You’ll experience better speed control and less motor stress when voltage drop is minimized by using appropriate gauge wires and secure connectors.

Keep the feed path clean

Spatter and debris in the liner, tip, or drive area will interrupt feeding and increase wear. You’ll want to clean and inspect these areas frequently, especially after long sessions or when switching wire types.

Pros and cons

You’ll find it helpful to weigh the benefits against limitations before buying.

Pros

• Compact and lightweight design that’s easy to mount and swap.
• Copper interface for improved conductivity and stable connections.
• Broad wire diameter range and versatile feed speed (2–15 m/min).
• Low noise and claimed extended service life for everyday use.
• Aluminum housing resists corrosion and reduces weight.

Cons

• Torque and power are limited compared to heavy-duty industrial feeders.
• You’ll need to confirm exact mechanical mounting compatibility with your specific welder.
• Long, sustained heavy-duty welding may push the motor beyond its ideal operating envelope.
• Additional drive rolls or adapters might be needed for some wire types or spool arrangements.

Who should buy this

You should consider this CNCTOPBAOS motor if you’re a hobbyist, small shop owner, or technician who needs a compact, reliable wire feeder for MIG/MAG, gasless MIG, or light robotic applications. If you do light-to-moderate welding jobs and want a low-noise, corrosion-resistant feeder that’s easy to install, this could be a good fit.

Who should not buy this

You shouldn’t pick this motor if your primary work involves heavy production welding with large wire diameters, or if you need advanced electronic speed control and industrial-grade torque and durability. For heavy manufacturing, invest in an industrial-spec feeder designed for continuous high-load operation.

Installation checklist

You’ll find this checklist useful when fitting the unit to your machine.

1. Confirm mounting pattern and physical clearance.
2. Verify 24V DC supply capable of ~2A continuous current.
3. Match drive roll type and size to wire diameter.
4. Inspect and clean spool path and liner.
5. Secure electrical connections and check polarity.
6. Run a slow test feed and adjust pressure, then test full range.

You’ll reduce setup headaches and minimize the risk of wire feeding issues by following this basic sequence.

Frequently asked questions

You’ll likely have some common questions; here are quick answers.

Q: What wire diameters can this motor handle? A: The specification lists 0.6–10 mm (0.02–0.39 in), but practical performance is best for commonly used MIG wire sizes (0.6–1.2 mm) and flux-cored wires. Very large wires near 10 mm are uncommon in typical MIG setups and may need specialized drive systems.

Q: Can this motor be used with robotic systems? A: Yes, it’s commonly used in small robotic welding or trolley setups, as long as the mounting, wiring, and control compatibility are verified.

Q: Is the copper interface a big advantage? A: Yes, copper improves electrical conductivity and reduces contact resistance, which helps maintain stable weld current and improves overall performance during continuous runs.

Q: Does the motor include drive rolls? A: Check the package contents when purchasing. Some listings may include basic drive rolls while others may require you to source rolls that match your wire diameter and groove type.

Q: How noisy is the unit? A: The motor is described as low-noise. In practice, you’ll still hear mechanical drive sounds, but they should be subdued compared to cheaper feeders.

Troubleshooting guide

You’ll find quick fixes for typical problems helpful when things go wrong.

• Problem: Wire slipping. Fix: Reduce feed speed, inspect and replace worn drive rolls, increase drive pressure, ensure correct groove profile.
• Problem: Motor stalls or hums. Fix: Check 24V supply and wiring, ensure no mechanical blockage, inspect bearings and shaft for seizure.
• Problem: Erratic feed speed. Fix: Check voltage stability and control wiring, clean feed path, ensure spool rotates freely.
• Problem: Excessive wire deformation. Fix: Use a different drive roll profile or lower pressure; check wire diameter selection.

You’ll want to be methodical when troubleshooting—start with the simplest checks like electrical connections and drive roll condition.

Accessories and parts to consider

You’ll sometimes need spare items to keep downtime minimal.

• Extra drive rolls in V, U, and knurled profiles.
• Spare pressure pads and springs.
• Replacement tension springs or mounting brackets.
• Proper gauge wiring and secure connectors for 24V lines.

You’ll be prepared for quick replacements if you keep these common parts on hand.

Price and value proposition

You’ll typically see this motor priced in the budget-to-mid range for feeder motors. The value comes from a balance of compact design, copper interface, and sufficient power for many common welding tasks.

Is it worth the money?

If you need a practical, compact feeder for hobby, repair, or small-shop use, you’ll likely find it offers good value. If your needs include heavy continuous production, you’ll get better long-term value from a more robust industrial feeder.

Final verdict

You’ll get a compact, practical wire feed motor in the CNCTOPBAOS DC 24V 40W unit that suits hobbyists, small shops, and light robotic applications. The copper interface and aluminum construction are solid selling points, and the feed speed and torque specifications match many common welding tasks. If your work is mostly light- to medium-duty welding and you value ease of installation and low noise, this motor is worth considering. If you need high endurance for industrial production, consider stepping up to a heavier-duty feeder tailored to that environment.
