DC 24V 40W Mig Welder Feeder review

?Thinking about upgrading your wire feeder for better consistency and reliability in your MIG welding setup?

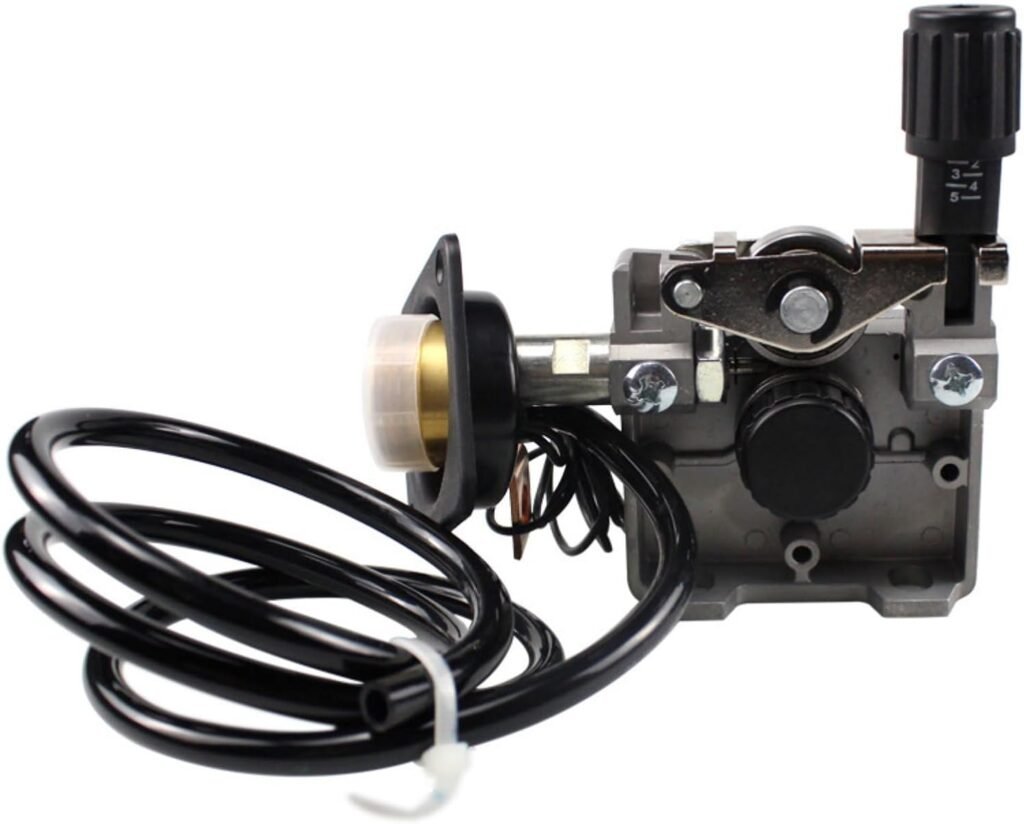

Quick overview of the DC 24V 40W Mig Welder Feeder, Welder Roll Wire Feed Motor with copper Interface Assembly Support 0.6-1.0mm wire up to 5kg welding wire, for Flux Core MIG Welder/Lift TIG/Stick 3 in 1 Welding Machine

You’ll find this unit is a straightforward gasless MIG wire feeder built around a DC 24V single drive motor. It’s designed for users who want a compact, robust feeder that supports 0.6–1.0mm wire diameters and spool sizes up to 5 kg, making it suitable for many hobbyists and light industrial setups.

What this product is best for

You’ll appreciate this feeder when you need a reliable feed for flux-cored (gasless) MIG welding, or when you use a 3-in-1 welding machine that offers MIG/MAG, Lift TIG, and Stick functions. It’s particularly handy for spot welding and continuous welding operations where a steady, low-noise feed and decent torque matter.

Key features at a glance

You’ll want to know which features matter most before you commit to a purchase. This section lists the standout features and why they matter for your welding projects.

• DC 24V, 40W single drive motor rated at 2.5A for stable, continuous operation.
• Wire feed speed range from 2 m/min to 18 m/min to cover slow tack and faster seams.
• Supports 0.6–1.0 mm wire diameter with V-groove and K-groove feed wheels for flexibility with different wire types.
• Compatible with welding wire spools up to 5 kg and feasible wire conduit lengths from 3 m to 10 m.
• Maximum operating torque 15 kg·cm with instantaneous torque up to 36 kg·cm for handling stickier wires and brief stalls.
• Low noise and long service life emphasized for workshop use.
• Copper interface assembly to support better conductivity and durability at the mounting/connection point.

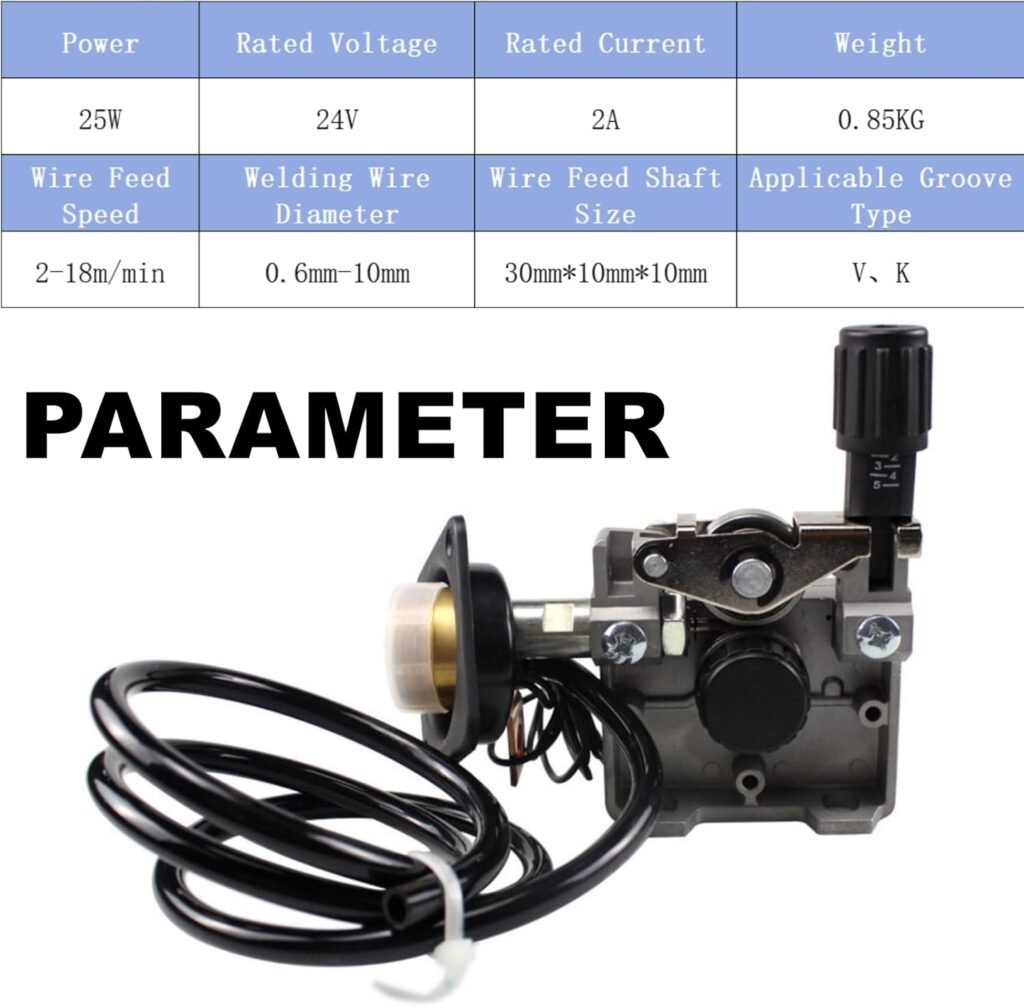

Detailed specifications

You’ll find detailed specs below laid out so you can match the feeder to your machine and job requirements. This table breaks down the essential technical numbers and physical dimensions for quick comparison.

Parameter	Specification
Model / Name	DC 24V 40W Mig Welder Feeder (single drive motor)
Rated Voltage	DC 24V
Current	2.5 A
Power	40 W
Wire Diameter Supported	0.6 mm – 1.0 mm
Wire Spool Capacity	Up to 5 kg
Wire Feeding Speed	2 m/min – 18 m/min
Wire Conduit / Tube Compatibility	3 m – 10 m
Feed Wheel Types	V-groove and K-groove (included/compatible)
Maximum Operating Torque	15 kg·cm
Instantaneous Max Torque	36 kg·cm
Noise Level	Low (manufacturer claims)
Dimensions (Width)	140 mm
Dimensions (Height after handle lock)	150 mm
Applications	Gasless MIG/MAG, Lift TIG (wire feeder support), Stick (3-in-1 machine compatibility)
Construction Highlights	Copper interface assembly, single drive motor, durable housing
Typical Use Cases	Spot welding, continuous seam welding in flux-core MIG

Build quality and design

You’ll notice the feeder is designed to be compact and functional, with an emphasis on reliable mechanical parts where they matter. The copper interface assembly and the option for two different feed wheel profiles (V and K) point to a focus on flexibility and electrical conductivity where you mount the feeder.

The housing feels solid for regular shop use, and the handle lock dimension suggests the unit remains compact and manageable when installed. The single-drive configuration is simpler than dual-drive systems, which can be a plus for maintenance and ease of use, but you need to ensure you keep drive surfaces clean and well-aligned.

Performance and feed consistency

You’ll care most about how consistently it feeds wire under real welding conditions, and this feeder aims to deliver steady performance. The 2–18 m/min speed range covers most light-to-medium MIG applications, from tacking and spot welds to continuous seams.

Torque figures are important when you use longer liners or wires that may have more resistance. The 15 kg·cm continuous and 36 kg·cm instantaneous torque are respectable for a compact unit, meaning it can handle brief feed loads without slipping. The manufacturer’s claim of low noise and long service life matches what you’d expect from a unit with proper gearing and a decently sized motor for the rated load.

How it performs with different wire types

You’ll be able to feed flux core wires easily using the K-groove or V-groove wheels depending on wire construction. For softer wires like aluminum (though 0.6–1.0 mm aluminum feed can be tricky), the single drive and short tube lengths (3–5 m recommended) will give better results. Steel flux core wires generally feed very reliably through the included configurations.

The feeder’s performance is optimized for short feeder-to-torch distances; long feeder tubes approaching 10 m will increase resistance and may require careful tuning of the feed speed and tension.

Installation and setup

You’ll have a straightforward installation if your welding machine supports an external wire feeder interface and the power/voltage expectations. The copper interface assembly is meant to improve electrical and mechanical connection, but check alignment and cable routing carefully to avoid kinks and excess friction.

Mounting involves securing the feeder in place, attaching the wire spool (up to 5 kg), threading the wire through the feed wheel and liner, and setting the correct pinch roller tension. Make sure you choose the correct groove wheel (V or K) for your wire type; incorrect wheel selection or improper tensioning can lead to birdnesting or irregular feeding.

Step-by-step setup tips

You’ll save time by following a consistent setup routine. Start with these steps:

1. Verify your machine supports an external feeder and the interface matches the feeder’s copper assembly.
2. Mount the feeder in a stable location near the welding machine; keep cable paths short and free of tight bends.
3. Fit the correct feed wheel for your wire diameter and type; tighten the wheel to the feed motor shaft as directed.
4. Install the spool up to 5 kg, orienting it so the wire feeds smoothly off the spool (check whether hub-in or hub-out orientation is required).
5. Thread the wire through the liner, through the feed mechanism, and into your torch liner. Adjust tension for firm but not crushing contact.
6. Set the wire feed speed (start on the low side) and test feed without arc, watching for smooth movement.
7. Make a short test weld on scrap metal to confirm speed and tension settings before starting a real job.

Compatibility with machines and consumables

You’ll want to be sure your welding machine and consumables match the feeder’s capabilities. This feeder is tailored for 3-in-1 machines offering gasless MIG (flux-core), Lift TIG, and Stick functions. It’s most commonly used with flux-core welding wire (0.6–1.0 mm) up to 5 kg spools.

Torch liners and conduit lengths should be kept to 3–10 m, with shorter lengths preferred for best performance. If your torch uses a long, coiled cable or nonstandard liners, you should verify friction and fitment before committing to long seam welding.

Which wires and torches work best

You’ll get best results with flux-core and mild steel solid wires within the 0.6–1.0 mm range, using standard MIG torches and short to moderate liner lengths. Aluminum wires may be possible in the smaller diameter range, but you should use a compatible liner and consider a dedicated aluminum feeder if you plan frequent aluminum work.

Real-world use cases

You’ll find this feeder useful in a variety of applications:

• Light fabrication and repair work on steel where flux-core welding is common.
• Automotive body repairs or patchwork where you need portable, gasless welding.
• Small workshops and hobbyist setups that need a compact feeder for a 3-in-1 machine.
• Spot welding and continuous seams on sheet and light plate metals, where the feed rate range of 2–18 m/min is sufficient.

The feeder isn’t targeted at heavy industrial production where high-speed feeding, dual-drive precision, or very large spool capacities are needed, but it’s great for consistent, reliable performance in a shop or on-site repair environment.

Noise, vibration, and durability

You’ll notice this feeder is marketed as low noise and built for a long service life. Low-noise operation is helpful if you work indoors or in shared spaces. Durability is supported by the copper interface assembly and solid motor internals, but as with any tool, long service life depends on maintenance and sensible use.

Keep the feed path clean and avoid allowing rust, welding splatter, or metal dust to accumulate. Periodically check and replace wear parts like feed rollers and bearings to preserve noise and reliability characteristics.

Table: Common settings and recommended uses

You’ll find this table handy for choosing feed speed and wire type combinations based on typical projects.

Application	Wire Type	Wire Diameter	Recommended Feed Speed	Notes
Spot welding thin sheet	Flux-core	0.6 mm	3–6 m/min	Lower speed for tack; ensure correct tension to avoid birdnesting
Light bodywork seams	Flux-core / Solid	0.8 mm	6–12 m/min	Good balance of penetration and travel speed
Small structural seams	Flux-core	1.0 mm	10–18 m/min	Higher feed near 18 m/min for continuous seams; watch heat input
Short-run TIG (lift) support	Solid (if feeding)	0.6–0.8 mm	2–8 m/min	Use carefully; many TIG tasks prefer manual filler
Long torch runs (3–10 m)	Flux-core	0.6–1.0 mm	Lower end of range	Maintain tension and consider slight feed speed increases to compensate for friction

Maintenance and care

You’ll extend the life of this feeder by keeping moving parts clean and periodically checking electrical connections. Brush off dust and metal shavings after use, and store the unit in a dry place to prevent corrosion.

Lubricate pivot points if recommended by the manufacturer, and inspect feed wheels, liners, and the copper interface for wear. Replace the feed wheel if grooving or flattening occurs and change worn liners to avoid feeding issues.

Replacement parts to keep on hand

You’ll save downtime by having a few spare parts available:

• V-groove and K-groove feed wheels for the wire diameters you use most.
• Replacement liners for your most common torch length.
• Spare pinch rollers and spring assemblies.
• Fasteners and small electrical connectors for the copper interface.

Troubleshooting common issues

You’ll likely run into a few common problems the first time you set this feeder up, and most are easy to fix. Below are typical concerns and straightforward remedies to get you welding smoothly.

• Wire birdnesting (tangled wire at the spool): Reduce tension, ensure proper spool orientation, and check feed wheel alignment.
• Slipping feed (wire not advancing): Increase pinch roller pressure slightly, check for dirty or glazed feed wheel surfaces, and confirm correct wheel groove for wire diameter.
• Erratic feed or burnback: Inspect liner for kinks, ensure proper contact at the copper interface, and minimize liner length where possible.
• Excessive noise or vibration: Tighten loose mounts, check bearings and gears for wear, and replace worn feed wheels.
• Poor arc stability: Verify wire type and diameter, check ground connection on workpiece, and adjust feed speed to match voltage/current settings on your welding machine.

Safety considerations

You’ll need to adhere to standard welding safety practices whenever you set up and use this feeder. That includes wearing appropriate PPE (helmet, gloves, jacket, and eye protection), ensuring proper ventilation for flux-core welding fumes, and preventing accidental contact with live electrical components.

Secure the unit so it won’t shift during operation, keep cables tidy to prevent tripping or snagging, and avoid storing the feeder with wire threaded through the liner to prevent moisture accumulation and contamination.

Pros and cons

You’ll want the pros and cons clearly laid out so you can decide if this feeder fits your needs. Below is a balanced list to help you weigh your purchase.

Pros:

• Supports a practical range of wire diameters (0.6–1.0 mm) and spool sizes up to 5 kg.
• Decent torque for a compact unit, allowing brief high-load conditions without slipping.
• Low noise design and copper interface for better conductivity and durability.
• Compatible with 3-in-1 welding machines supporting gasless MIG, Lift TIG, and Stick functions.
• Simple single-drive layout simplifies maintenance and use.

Cons:

• Single-drive might not match the precision of dual-drive systems for fine aluminum feeding or very long liner runs.
• Limited to 5 kg spools; larger production spools will require more frequent changes.
• Performance degrades with very long liner lengths near the 10 m upper limit; best used with shorter runs.
• Not specialized for heavy industrial or high-speed production welding lines.

Comparison with similar feeders

You’ll see differences when comparing this unit to other feeders. Dual-drive feeders, for example, give you better grip and lower slip risk with soft wires like aluminum; they also tend to handle long liner lengths better. However, they are typically larger, heavier, and more complex.

Compared to small built-in feeders on some economy machines, this external feeder provides better control over wire selection, wheel options, and spool size, giving you more flexibility for upgrading a hobby machine or light production setup.

Who should buy this product

You’ll be happiest with this feeder if you:

• Operate a 3-in-1 MIG/Lift TIG/Stick machine and primarily use flux-core wire for repairs and fabrication.
• Need a compact feeder for a small shop or mobile welding setup.
• Want a durable, low-noise solution for moderate welding tasks without moving to heavier industrial gear.
• Prefer a simple single-drive system that’s easy to maintain and set up.

If you’re a high-volume production shop or you frequently weld aluminum, you might consider a dual-drive or dedicated aluminum feeder instead.

Price and value considerations

You’ll likely find this feeder offers good value for hobbyists and small shops based on its specifications and features. The inclusion of both V-groove and K-groove compatibility, copper interface assembly, and respectable torque figures provide a good balance between cost and functionality.

Factor in the cost of any additional consumables (liners, different feed wheels, spare parts) and the potential benefit of having a dedicated external feeder if your current machine’s built-in feeder is limiting your work.

Tips to get the best results

You’ll get better performance if you follow a few practical tips:

• Keep the liner length as short as practical for the job. Shorter liners reduce friction and improve feed consistency.
• Use the correct feed wheel profile for your wire type; K-groove often works better for flux-core and softer wires.
• Clean the feed mechanism and change feed wheels before they become significantly worn to preserve feed consistency.
• Test feed speeds on scrap material before starting a real weld, especially when you change wire type or liner length.
• Keep a small toolkit and spare parts nearby so you can quickly correct feed issues and minimize downtime.

Frequently asked questions (FAQ)

You’ll typically ask certain questions when considering a feeder like this. Here are the answers to the most common ones.

Q: Can this feeder handle aluminum wire? A: Technically the diameter range includes small aluminum wires, but aluminum feeding works best with specialized drive and liner combinations. If you plan frequent aluminum welding, consider a dedicated aluminum feeder or carefully test with a high-quality liner and short runs.

Q: Will it work with my 3-in-1 welding machine? A: If your machine supports an external wire feeder and the electrical interface matches typical DC 24V feeders, it should work. Confirm connector types, mounting points, and control signal compatibility before buying.

Q: How often will I need to replace feed wheels or liners? A: Frequency depends on usage. In a busy shop you might replace liners and feed wheels several times a year; for hobby use, yearly inspection and replacement as needed is common. Replace parts as soon as you notice worn grooves or feeding inconsistencies.

Q: Can I use spools larger than 5 kg? A: The feeder is designed for spools up to 5 kg. Larger spools may be too heavy or may not fit the spool hub and could overload the motor or cause feed issues.

Final verdict

You’ll find the DC 24V 40W Mig Welder Feeder, Welder Roll Wire Feed Motor with copper Interface Assembly Support 0.6-1.0mm wire up to 5kg welding wire, for Flux Core MIG Welder/Lift TIG/Stick 3 in 1 Welding Machine to be a sturdy, practical choice for hobbyists and small shops. It strikes a good balance between simplicity, durability, and performance for gasless MIG welding and is a sensible upgrade for compatible 3-in-1 machines.

If you want a compact, low-noise feeder with decent torque and good consumable compatibility for routine repair and fabrication tasks, this unit is worth strong consideration. Ensure compatibility with your machine and torch setup before purchasing, and you’ll likely add a dependable tool to your welding arsenal.
