MIG Welder 135Amp DEKO 3-in-1 Welding Machine review

Are you trying to decide if the MIG Welder 135Amp: DEKO 220V Flux Core MIG/Lift TIG/Stick 3-in-1 Welding Machine IGBT Inverter Portable Kit with Welding Gun, Wire is the right tool for your projects?

First Impression

When you first unbox the MIG Welder 135Amp: DEKO 220V Flux Core MIG/Lift TIG/Stick 3-in-1 Welding Machine IGBT Inverter Portable Kit with Welding Gun, Wire, the compact size and clear digital display stand out. The unit feels lightweight and manageable at 12.8 pounds, so you can easily carry it to the garage, job site, or a DIY project around the house. The digital readout and clearly labeled controls make the machine seem approachable whether you’re new to welding or coming from more experience.

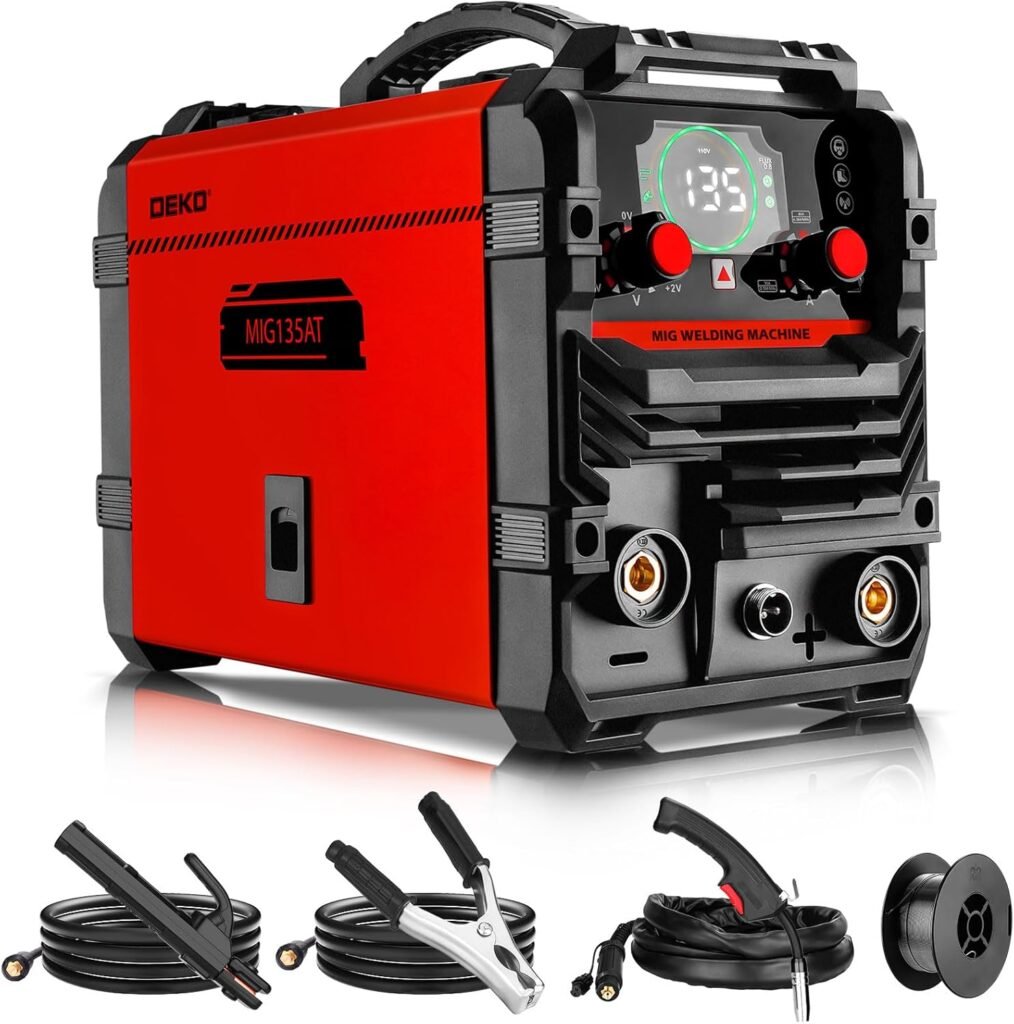

What You Get in the Box

You receive a portable kit that includes the main inverter unit, a MIG welding gun, some welding wire, a ground clamp, power cable, and basic accessories. Note that the machine supports Lift TIG, but you need to buy a separate lift TIG torch to use that function. The included items are enough to get you started with flux-core MIG and stick welding right away.

Key Features Overview

Below is a quick glance at the most important features so you can decide what matters most for your usage.

Feature	What it Means for You
IGBT inverter technology	More efficient power conversion, improved arc stability, and lower energy loss compared with older transformer welders
3-in-1 capability	MIG (flux core), Lift TIG (torch sold separately), and Stick welding—gives you flexibility for different tasks
Digital display & synergistic control	Easier to read and adjust settings; helpful for beginners to dial in wire feed speed and voltage
220V input	Requires a 220V outlet—delivers higher output for better penetration on thicker materials than 110V hobby models
Portable & lightweight (12.8 lbs)	You can carry it between jobs or around your workspace without strain
Safety protections	Auto voltage fluctuation compensation, overcurrent and overload protection for safer operation
Included welding gun and wire	Ready for flux-core MIG welding out of the box; no shielding gas required for flux core

IGBT Inverter Technology

The intelligent IGBT inverter is one of the most beneficial features for you. It reduces energy loss and improves efficiency, which results in smoother arcs, less power waste, and more consistent welds. For your projects, that means more reliable startup behavior and better performance when you change settings.

IGBTs also contribute to a smaller, lighter design, so the portability claim isn’t just marketing—this technology helps make it possible.

Why this matters to your welding

You’ll notice fewer fluctuations in arc stability and a generally more responsive machine when you change wire feed speed or amps. If you’re working on thinner sheet metal or patchwork, that responsiveness helps prevent burn-through and makes it easier to control bead appearance.

3-in-1 Welding Modes: MIG, Lift TIG, Stick

Having multiple processes in one unit gives you flexibility. You can use:

• MIG (flux core) for quick, no-gas welding on mild steel—ideal for outdoor jobs or when you need portability.
• Lift TIG for cleaner, more precise welds, especially useful if you buy a torch and want to work thin stainless or steel with better aesthetics.
• Stick for outdoor repair, thicker steel, or rusty surfaces where flux-core or TIG might struggle.

Practical considerations

Remember that Lift TIG requires a separate torch purchase. If most of your work will be MIG flux core and stick, the included accessories will probably be sufficient. If you plan to TIG frequently, budget for a compatible lift TIG torch.

Portability and Build Quality

At 12.8 pounds, you can carry this welder without a dolly or cart. The handle is integrated and comfortable for short moves. The housing feels durable for hobby and light professional use, though it’s not built like a heavy industrial weld plant.

How you’ll use it

Because it’s compact, you can take it to a friend’s place, a remote job site, or simply move it around your garage. If your work frequently requires heavy duty continuous duty cycle performance (long, uninterrupted welds on very thick plates), you’ll need to watch for thermal cutoff and duty cycle limitations typical of compact inverter welders.

Safety Features and Protections

Safety is an important part of working confidently. This unit includes automatic voltage fluctuation compensation and protections against overcurrent and overload. That means if your input supply fluctuates, the machine compensates to keep the arc stable and protect internal components.

What this protects you from

The protections help prevent damage to the welder and reduce the chance of electrical faults that may create unsafe situations. Still, you must follow basic welding safety practices—proper PPE, ventilation, and secure grounding remain essential.

Ease of Use and Controls

The advanced digital display increases visibility and helps you quickly set parameters like wire feed speed and voltage. The synergistic control means the machine can help match wire feed speed to the selected voltage range, which is particularly useful if you’re getting started and still learning ideal settings.

Why beginners will appreciate it

You won’t have to guess as much about starting points for settings, and the clear display makes fine adjustments easier. Small welders often struggle with stable wire feeding; this model’s adjustable feed speed and digital feedback reduce that concern.

Performance in Real-World Welding

Here’s a practical look at how this machine performs across its three modes in everyday scenarios.

MIG Flux Core Performance

You’ll find flux-core MIG convenient for repairs, car panels, and structural touches where external gas isn’t an option. The built-in wire feed motor is adjustable and can produce reasonable bead appearance when tuned properly. For best results, use clean edges, correct wire diameter, and appropriate speed/voltage settings.

You’ll also want to pay attention to travel angle and speed: with flux core, a slightly faster travel speed and a slight push angle can minimize slag and produce more uniform beads.

Lift TIG Performance

If you add a lift TIG torch, you can expect decent TIG performance for thin material and finish work. Lift TIG won’t be as elegant as a dedicated AC/DC TIG unit, but for DC TIG tasks on mild steel, it’s competent.

Because Lift TIG uses a touch-start method rather than high-frequency start, you’ll need to touch the tungsten briefly and lift to initiate the arc — practice will quickly improve your technique.

Stick Welding Performance

Stick mode provides strong penetration and is forgiving on rusty or dirty material. You’ll appreciate the stick mode for farm repairs, structural maintenance, or when working in environments with wind or contaminants that make MIG impractical.

Stick setup is straightforward: select current and stick electrode size appropriate for material thickness, maintain consistent arc length, and keep a stable stance for even beads.

Thickness & Materials Capability

This machine is best for thin to medium-thickness mild steel applications—think sheet metal repair, light structural work, hobby fabrication, and maintenance. You can weld thicker sections in short passes, but heavy plate and industrial fabrication may push the limits of a 135A unit.

It handles mild steel well with both flux core and stick rods. If you plan to weld stainless or aluminum frequently, remember that TIG capability is limited to DC lift TIG and you’ll need a separate TIG torch; aluminum TIG typically requires AC capability, which this machine does not offer unless specified otherwise.

Setup and Getting Started

Setting up your new DEKO involves a few clear steps.

• Place the unit on a stable surface with good ventilation. Avoid confined spaces that trap heat.
• Connect to a proper 220V outlet with adequate amperage and a dedicated circuit to avoid voltage drops.
• Install the wire spool and feed it through the guide to the welding gun according to the manual.
• Tension the drive roller appropriately—too loose and the wire will slip; too tight and the wire may deform.
• Start with conservative settings on the digital display and increase wire feed speed and voltage gradually until you achieve a stable arc and desired penetration.

Recommended starter settings (approximate)

These are guideline starting points. Exact settings depend on wire diameter, feed quality, and joint geometry.

Material & Thickness	Process	Wire Diameter	Approx Wire Feed Speed	Voltage / Amperage
Mild steel, 18 ga (0.8 mm)	Flux-core MIG	0.030″	Low	Low voltage
Mild steel, 16–14 ga (1.2 mm)	Flux-core MIG	0.035″	Medium-low	Medium voltage
Mild steel, 1/8″ (3 mm)	Flux-core MIG	0.035″	Medium	Medium-high voltage
Mild steel, 1/4″ (6 mm)	Stick (6013/7018)	N/A	N/A	Higher amperage near max
Thin sheet stainless (TIG)	Lift TIG (with torch)	N/A	N/A	Lower amps for thin sections

Always test on scrap before committing to your workpiece and adjust gradually.

Maintenance and Care

You’ll prolong the life of your welder by following a few maintenance steps:

• Keep vents and fan areas clear of dust and metal particles to prevent overheating.
• Check consumables (contact tips, nozzles, drive rollers) and replace as they wear.
• Inspect cables and connectors for damage or loose connections before each use.
• Store in a dry, temperature-stable environment to prevent humidity-related corrosion.
• Clean the wire feed path periodically to avoid jams or inconsistent feeding.

When to seek repair

If you notice inconsistent arc behavior not corrected by settings, burning smells, or erratic display errors, stop using the unit and troubleshoot. Overcurrent or overload protections will sometimes trip—allow the unit to cool and reset, and check for blocked airflow or excessive duty cycle usage. If issues persist, contact customer support or a qualified technician.

Who Is This For?

This welder suits you if you’re:

• A hobbyist or maker doing metal fabrication, home repairs, or car panel work.
• A homeowner who needs a reliable machine for occasional maintenance and projects.
• A starter welder learning multiple processes with a single affordable unit.
• Someone who values portability and convenience over industrial continuous-duty performance.

It may not be ideal for you if you need heavy industrial duty, high continuous duty cycles, or frequent aluminum TIG welding requiring AC output.

Pros and Cons

Here’s a balanced look at strengths and limitations so you can match the unit to your needs.

Pros:

• Lightweight and portable; easy to transport.
• Three welding processes in one unit for flexibility.
• IGBT inverter provides efficient performance and smoother arc.
• Digital display with synergistic control eases setup and learning.
• Built-in protections increase safety and equipment longevity.
• Ready-to-use for flux-core MIG and stick welding out of the box.

Cons:

• Lift TIG torch not included; you must purchase it separately for TIG work.
• Limited for heavy industrial continuous welding—watch duty cycle.
• 220V requirement means no standard 110/120V convenience unless you have the proper outlet.
• May not replace dedicated TIG or heavy-duty MIG welders for specialized professional tasks.

Tips to Get the Best Results

Here are practical tips to help you succeed with the MIG Welder 135Amp: DEKO 220V Flux Core MIG/Lift TIG/Stick 3-in-1 Welding Machine IGBT Inverter Portable Kit with Welding Gun, Wire.

• Always practice on scrap to find the right wire feed and voltage balance for your material thickness and joint style.
• Keep your contact tips and nozzles clean; spatter buildup is a common source of wire feed problems.
• Match electrode and wire types to material and conditions: flux core for outdoor and dirty surfaces; stick for rusty or heavy repair; TIG for clean, thin metals with torch.
• Maintain a consistent travel speed and angle: for flux core, a slight push angle and steady speed reduce slag inclusion.
• Use proper PPE and ensure good ventilation or fume extraction, especially when flux-core welding.
• Use a dedicated 220V circuit to avoid voltage sag and protect the unit.
• If welding thin sheet metal, reduce amps and increase travel speed to limit burn-through.

Comparisons with Similar Models

Compared to single-process hobby welders, the DEKO 3-in-1 offers more versatility. Against heavier duty multi-process welders, it trades continuous duty capability for portability and affordability.

• Versus a dedicated, industrial MIG: You gain portability and lower cost but lose long-duty cycle performance and higher amperage capacity.
• Versus a dedicated TIG machine: You get TIG capability in a budget package but miss AC TIG for aluminum and some of the finesse of a high-end TIG setup.
• Versus 110V hobby welders: The 220V input gives you stronger output and better penetration but requires the right outlet.

If you want a single machine to learn processes, do home repairs, and tackle a variety of materials without investing in multiple machines, this one is a strong contender.

Frequently Asked Questions

Q: Do I need shielding gas for MIG welding with this machine? A: No—for flux-core MIG welding, shielding gas is not required. The included wire is flux-core, which produces its own shielding gas from the flux coating. If you want gas-shielded MIG, you’ll need to confirm the unit supports gas feed and get the appropriate regulator and gas setup.

Q: Is the Lift TIG torch included? A: No—the Lift TIG torch must be purchased separately. The machine supports Lift TIG functionality, but you’ll need the torch and possibly compatible consumables.

Q: Can I weld aluminum with this welder? A: Aluminum TIG usually requires AC TIG capability or a separate spool gun for MIG aluminum. This DEKO model focuses on DC processes (flux-core MIG, Lift TIG/DC, and stick), so aluminum welding is not its primary strength unless you use specialized accessories and techniques not included.

Q: What kind of power outlet do I need? A: You need a 220V outlet with sufficient amperage for the unit. Check your electrical panel and outlet rating to ensure safe operation.

Q: How suitable is this for beginners? A: Very suitable. The digital display, synergistic control, and straightforward setup make it beginner-friendly. You should still practice safety and basic welding techniques.

Troubleshooting Common Issues

• Wire feed slipping: Check drive-roller tension, feed path alignment, and spool placement. Replace worn drive rollers or contact tips.
• Inconsistent arc: Clean the workpiece, ensure proper ground connection, and verify wire quality and feed speed.
• Overheating/trips: Let the unit cool, check duty cycle limits, and ensure vents aren’t blocked. Reduce continuous welding time or provide additional cooling breaks.
• Excess spatter: Reduce voltage slightly, adjust wire feed speed, and tweak travel angle to optimize bead quality.

Safety Checklist Before Welding

• Wear a certified welding helmet, flame-resistant clothing, gloves, and eye protection.
• Ensure good ventilation or use a fume extractor for indoor welding.
• Keep flammable materials away from the work area.
• Ensure the grounding clamp is secure and the workpiece is stable.
• Use hearing protection and avoid loose clothing or jewelry that could catch.

Typical Use Cases

• Auto body repairs and patch panels using flux-core MIG for quick seams.
• Farm and equipment repair with stick welding for porous, rusty surfaces.
• Home fabrication projects: brackets, frames, and small gates.
• Learning all three processes without buying separate machines.

Price/Value Consideration

For the functionality you get—three processes, inverter efficiency, digital controls, and portability—the DEKO 135Amp provides solid value for hobbyists and light professionals. You’ll need to factor in extra purchases if you want to TIG regularly (torch) or perform aluminum work (specialized gear).

Final Verdict

If you want a versatile, portable welder that covers flux-core MIG, Lift TIG (with separate torch), and stick welding, the MIG Welder 135Amp: DEKO 220V Flux Core MIG/Lift TIG/Stick 3-in-1 Welding Machine IGBT Inverter Portable Kit with Welding Gun, Wire is an excellent choice for home shops, hobbyists, and light professional use. You’ll enjoy the efficiency and arc control offered by IGBT inverter technology, the clarity of the digital display, and the convenience of a compact unit that travels with you. Just be mindful that Lift TIG requires an additional torch purchase and that heavy industrial, continuous-duty tasks may require a more robust system. With proper setup, maintenance, and practice, this unit can become a dependable part of your welding toolkit.

If you want, I can provide a set of specific starter settings for common wire diameters and electrode types, or recommend compatible Lift TIG torches and consumables to expand the machine’s capabilities. Which would you like next?
